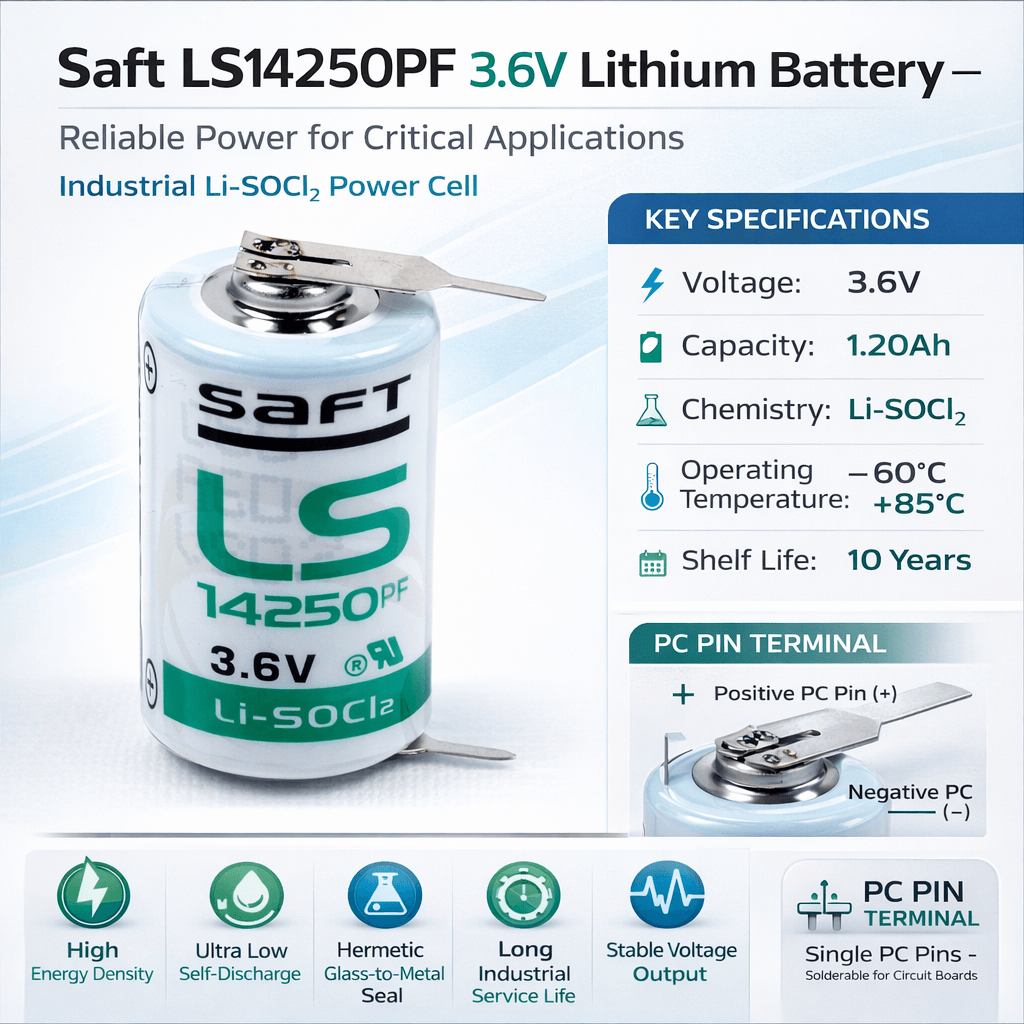

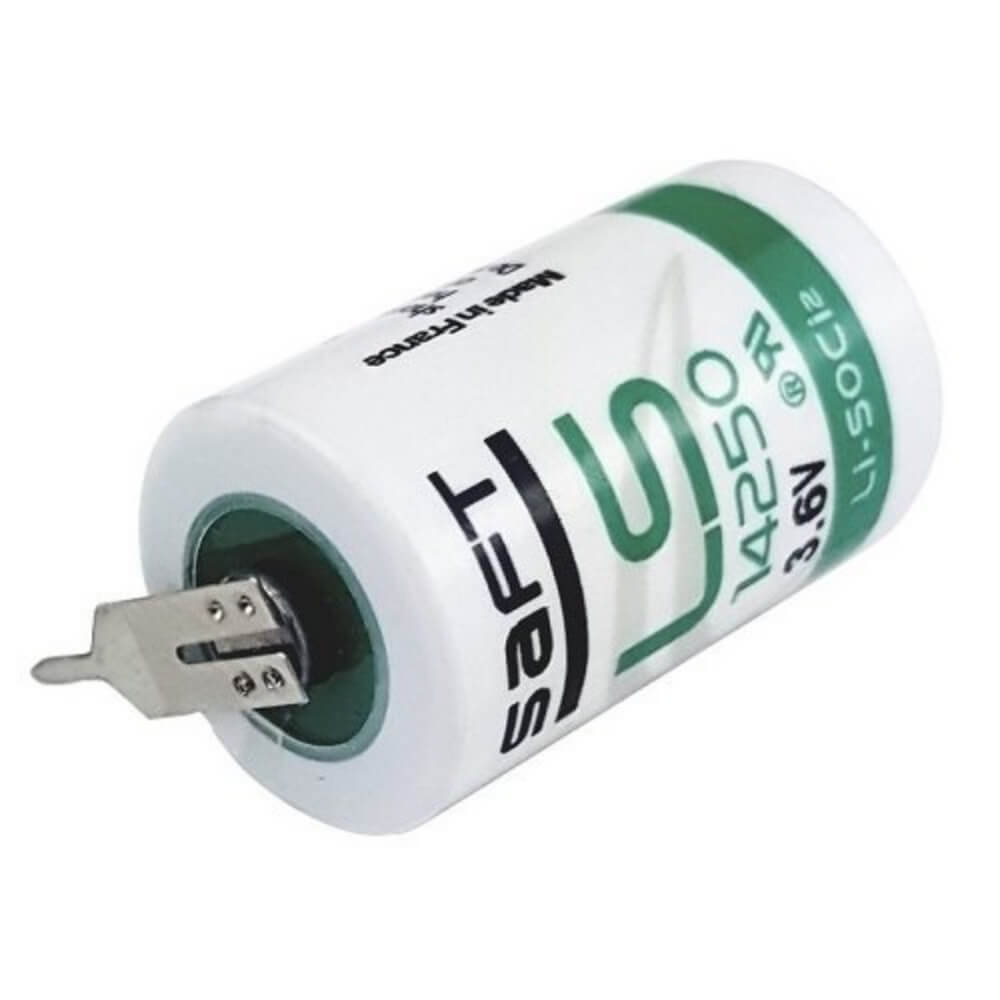

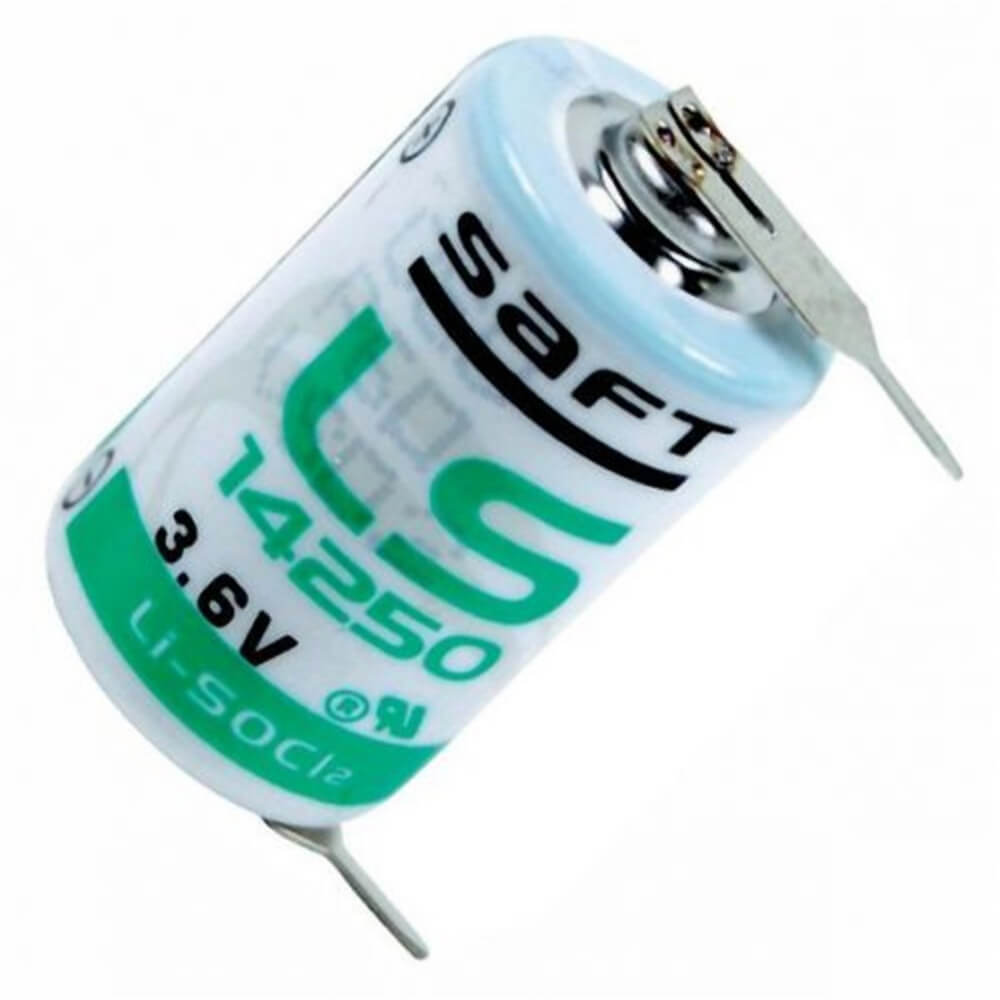

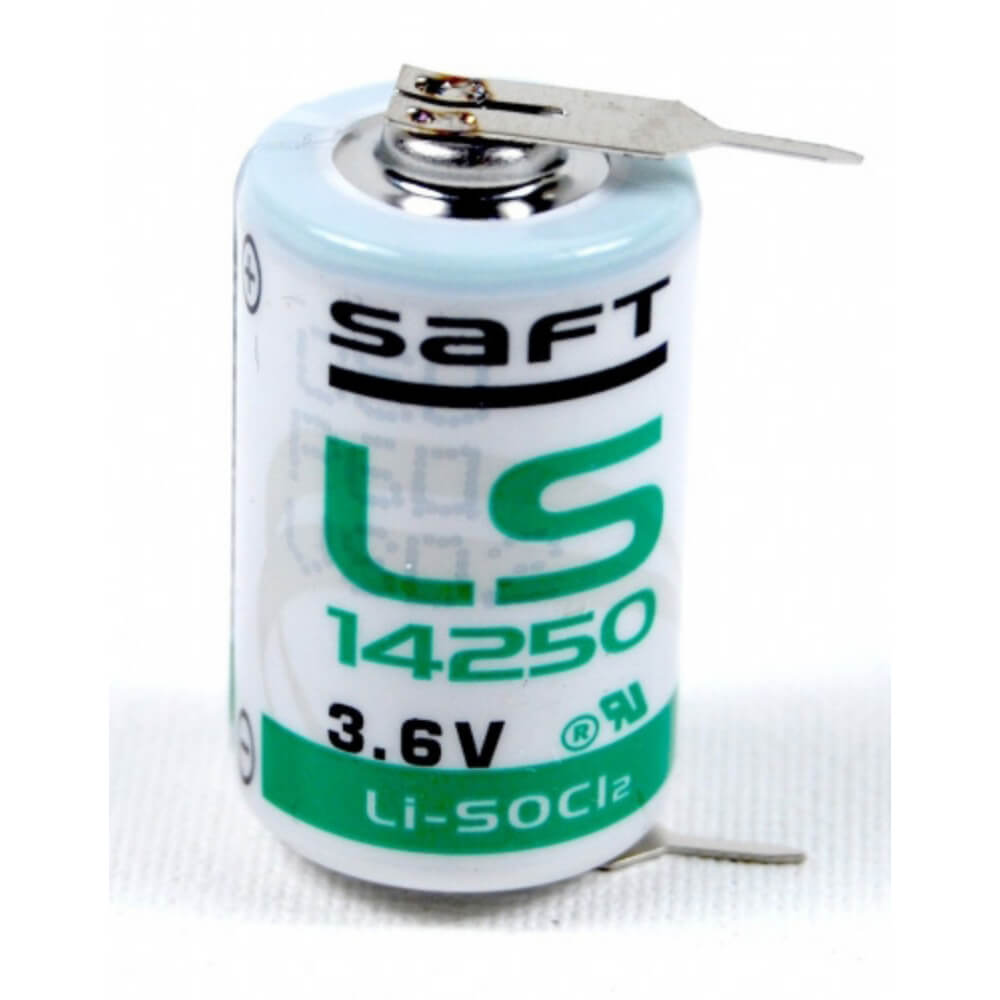

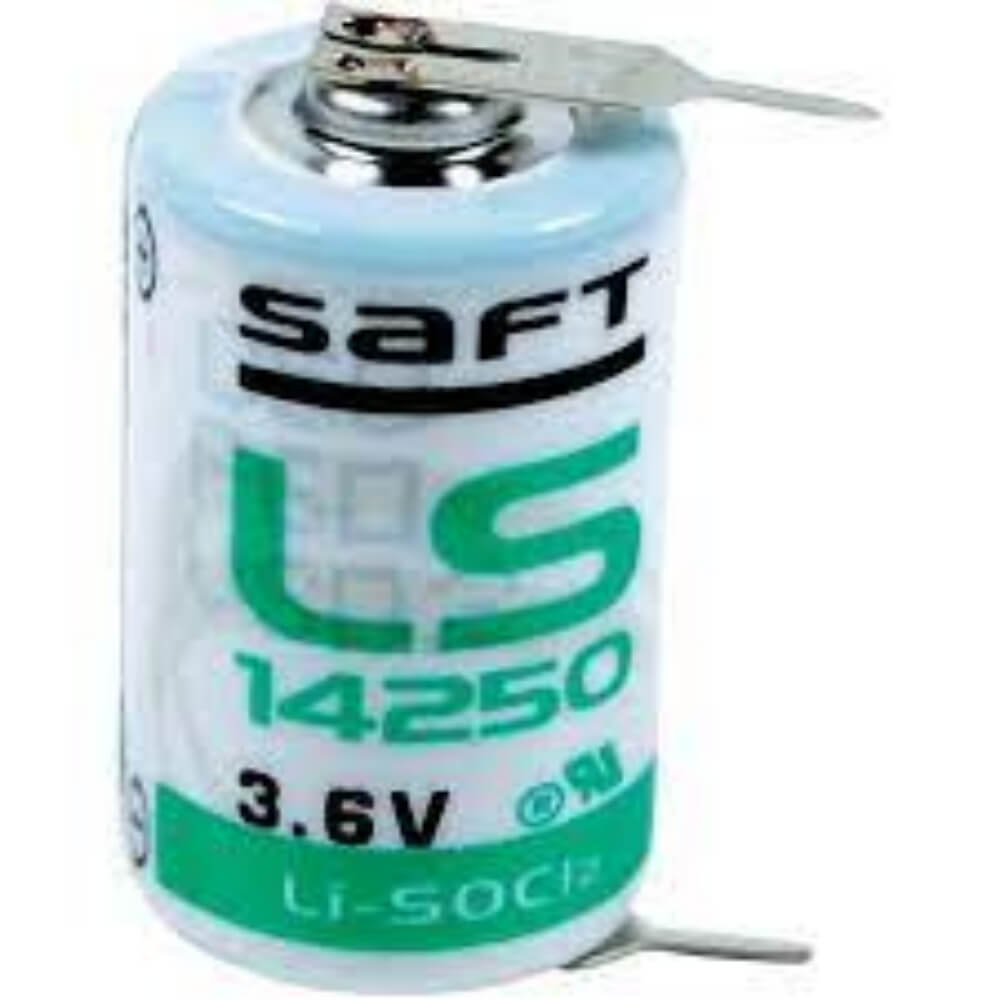

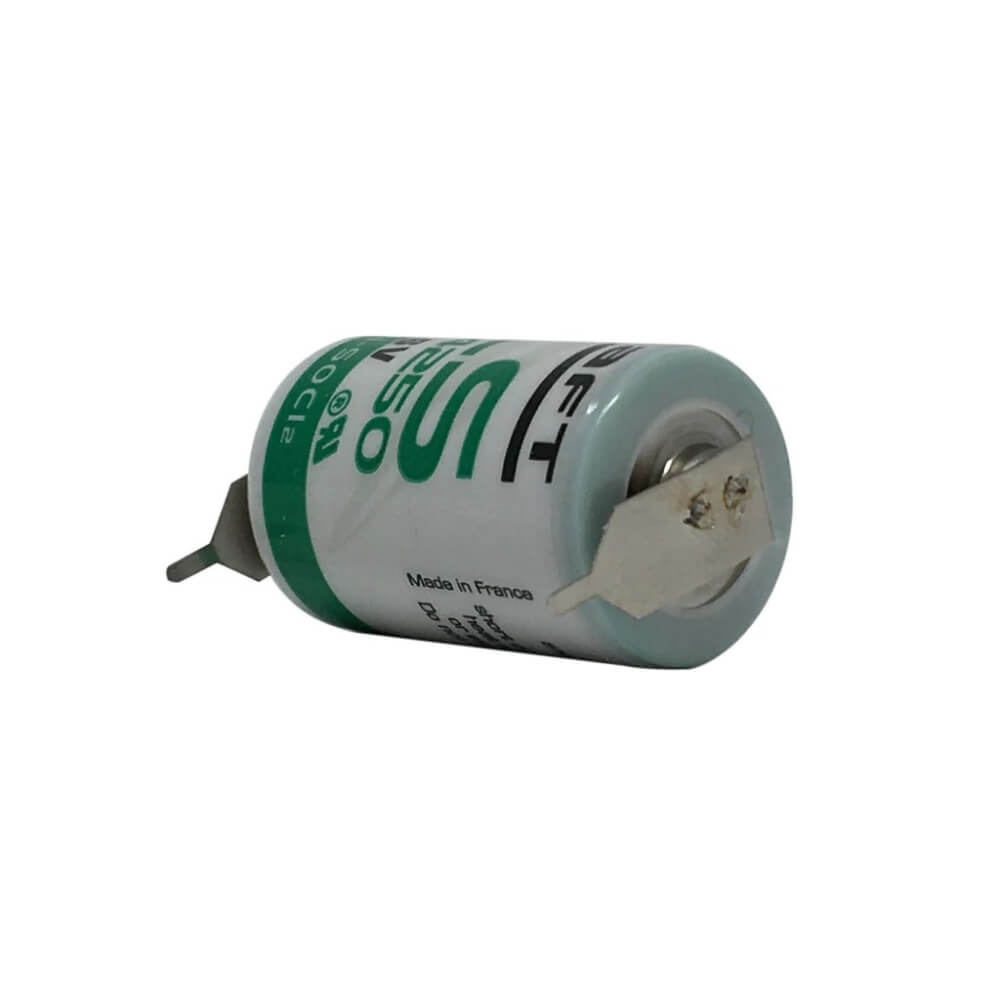

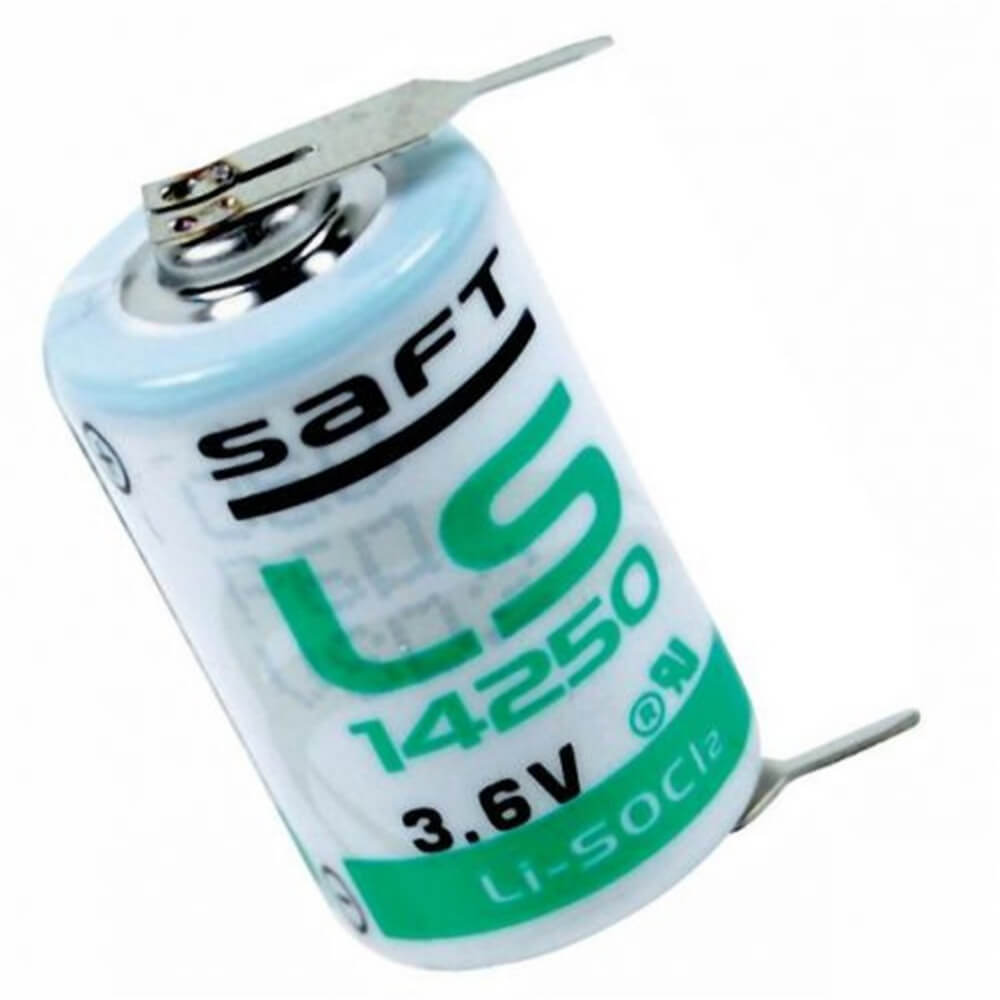

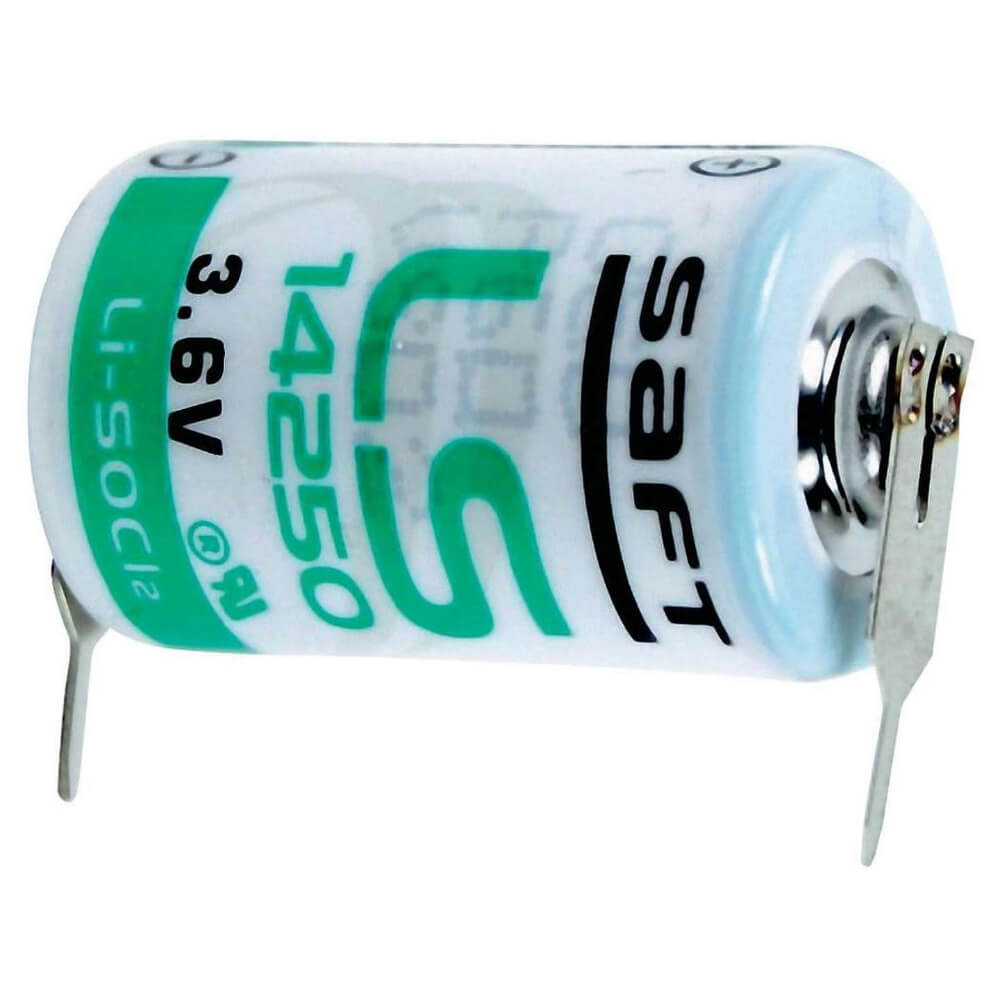

Saft Ls14250 1/2 Aa Pc Pins Dual Single Pin Terminal Battery
The Saft LS14250PF excels in providing a stable high-voltage response for the majority of its lifespan, making it ideal for applications such as utility metering, alarms and security devices, tollgate systems, memory backup, computer real-time clocks, tracking systems, automotive electronics, and professional electronics.
One of its standout features is its wide operating temperature range of -60°C to 85°C and a low self-discharge rate of less than 1% per year of storage at 20°C. This makes it a resilient choice for various environments and climates. It's also easy to integrate into compact systems and offers superior resistance to atmospheric corrosion.
The battery is encased in a stainless steel container with end caps to ensure low magnetic signature, and features a hermetic glass-to-metal sealing with a non-flammable electrolyte for safety. It is compliant with IEC 60086-4 and IEC 60079-11 safety standards and has also received Underwriters Laboratories (UL) Component Recognition.
The Saft LS14250PF exhibits a nominal capacity of 1.20 Ah (at 1 mA 20°C 2.0 V cut-off), an open circuit voltage of 3.67 V (at 20°C), and a nominal voltage of 3.6 V (at 0.1 mA 20°C). It also offers a pulse capability of up to 100 mA and a maximum recommended continuous current of 30 mA.
The physical dimensions of the battery include a maximum diameter of 14.62 mm (0.57 in), a maximum height of 25.13 mm (0.99 in), and a typical weight of 9g (0.3 oz). It contains approximately 0.3 g of lithium metal and is available with various termination suffixes including 2PF.
Designed for safety, it's important to note that this battery poses a fire, explosion, and burn hazard, so direct soldering to the cell should be avoided. The Saft LS14250PF should be stored in a clean, cool (preferably not exceeding 30°C), dry, and ventilated area for optimal longevity.
In conclusion, whether your application is in utility metering, security devices, or any other professional electronic device, the Saft LS14250PF is a reliable and efficient choice for your power needs.
Care information
Care information
Some Useful Battery Information
Please read this before using your new battery!
Cordless phone batteries, Cell phones, PDAs, Power Tool Batteries, and all devices with the chemistries below
These types of batteries can be NIMH, NiCad, or Lithium Ion all these three chemistries have similar properties when looking after them.
Initial charge- all three types of batteries should be fully charged overnight on receipt.
Charges 2-6- it is very important to fully charge the battery and then use the battery until the device says low battery. There is no need to force a discharge just use the device as normal until the battery runs down to about 20% of its charge. The important thing about these 2-6 conditioning cycles is that you do not top up the battery until it reaches about 20% of its charge. Do not let the battery run flat, especially on the first 3-4 cycles.
After conditioning- the best course of action to lengthen the life of these types of batteries is to only replace the device on the charger when the device needs charging. All three chemistries of batteries can be cycled around 500 times if the device was placed on the charger once every day after one use the battery would last approx 500 days if placed on the charger twice a day after use the battery would last approx 250 days. A battery does not half cycle so even if the battery was 80% charged a full cycle will be used when it is placed on charge.
SLA Batteries
This type of chemistry does not need conditioning the battery can be cycled around 300-400 times, although the battery is best used heavily at the top end of its charge. This battery should be topped up and not used till flat.
The average life of an SLA battery is 2-3 years depending on use and care.
Laptop Batteries
Most laptop batteries today use Lithium Ion Technology. The recommended care is slightly different from that above.
Initial charge- The battery should be fully charged overnight on receipt.
Charges 2-6- it is very important to fully charge the battery and then use the battery until the device is discharged to only about 20% of its charge. Do not let the battery drain down completely or the charging circuit in the laptop may not detect a good battery. This is especially important in the first 5 cycles. There is no need to force a discharge just use the device as normal until the battery runs down. The important thing about these 2-6 conditioning cycles is that you do not top up the battery until it reaches 20% of its charge.
After conditioning- the best course of action to lengthen the life of these types of batteries is more difficult to ascertain the main problem is that if you are constantly plugging in and out of the mains adaptor the battery life will be reduced significantly. .The best thing to do is to make sure that you fully cycle the battery and let it run low at least once a month. Lithium batteries need to be exercised to maintain their usability.
If you have any questions or would like to speak to us about your order please do not hesitate to contact us.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Everything You Need to Know About Our Shipping
Can we use our own carriers or FedEx, UPS, Purolator, Canpar, or Canada Post accounts to ship the order we have placed?
Unfortunately, due to our systems integration with these carriers, we are unable to offer this service at this time.
Do you offer same-day shipping?
Yes, as long as the order is placed before 11:59 am. (Please note this does not mean we offer same-day delivery.)
Can we come to your Oakville location and collect the products that we need urgently?
Not at this time.
Do you ship to Puerto Rico?
We are unable to ship lithium batteries to Puerto Rico, only NiMH batteries.
All About Our Paid Shipping Services
Canadianbatteries.com offers a wide variety of shipping methods through Canada Post, FedEx, UPS, Canpar, and Purolator. It's up to you to select the method best suited to your time scale and budget. Some shipping methods are not available for certain products.
Shipping costs are automatically calculated by our intelligent shipping estimation program based on the weight, distance to the destination, and the shipping service. To obtain your shipping cost, add the desired items to your shopping cart, proceed to checkout, and enter your postal code. Here you will be shown the available shipping methods, expected transit times, and the estimated delivery date with pricing.
It's important to understand that in-transit times and delivery dates are the best estimates provided by the respective carriers. Once we hand off the package to the carriers, responsibility for carrier or weather-related delays is passed to them. Transit times should be calculated only on business days and do not include weekends and holidays. Depending on product availability, this may postpone the actual shipping dates.
We endeavor to ship most orders by the next business day, but certain products, including sealed lead acid, may take longer. If there is a delay longer than five days, we will notify you. We can only ship to PO Boxes with Canada Post; FedEx and all our other services cannot deliver to post office boxes. We will require at least one business day for order processing.
Domestic Shipping Services Offered Through UPS, FedEx & Canada Post:
Canada Post
- Expedited: For many orders, this will be the cheapest solution (especially low-value lighter orders). Orders can be delivered to a Post Office Box. 1-10 business days transit depending on location.
- International (USA): We can ship NiMH, Alkaline, Sealed Lead Acid, and NiCd batteries to the United States, but we are unable to ship lithium batteries to the USA by the postal service. You would need to select FedEx for this chemistry.
FedEx
- FedEx Ground: This method is the fastest for shipping lithium metal batteries and is usually more economical for heavier shipments. We can ship all battery chemistries via this service.
- International (USA): We can ship Lithium Ion, Lithium Polymer, NiMH, Alkaline, Sealed Lead Acid, and NiCd batteries to the United States, but we are unable to ship lithium metal batteries to the USA by air. You would need to select FedEx Ground for this chemistry.
UPS
- UPS Standard: This method is the fastest for shipping lithium metal batteries and is usually more economical for heavier shipments. We can ship all battery chemistries via this service.
- International (USA): We can ship Lithium Ion, Lithium Polymer, NiMH, Alkaline, Sealed Lead Acid, and NiCd batteries to the United States, but we are unable to ship lithium metal batteries to the USA by air.
Purolator
- Purolator Ground: This method is the fastest for shipping lithium metal batteries and is usually more economical for heavier shipments. We can ship all battery chemistries via this service.
- Purolator International (USA): We can ship Lithium Ion, Lithium Polymer, NiMH, Alkaline, Sealed Lead Acid, and NiCd batteries to the United States, but we are unable to ship lithium metal batteries to the USA by air.
Canpar
- Canpar Ground: This method is the fastest for shipping lithium metal batteries and is usually more economical for heavier shipments. We can ship all battery chemistries via this service.
Customs and Import Duties
- Your order may be subject to retail sales tax, import duties, and/or taxes, which may be applied by your country when your package arrives.
- Canadianbatteries.com ships your package duties and taxes unpaid. We do not collect these charges and cannot predict what they may be. If you incur these additional charges, they must be paid for your package to clear customs.
- For more information regarding your country's customs policies, please contact your local customs office.
Acceptance of Incorrect Addressing Order Policy
A confirmation email is sent to you once your order is placed. Please check that the address details provided in this email are correct within 30 minutes of placing the order and notify us of any errors. If no corrections are made within this time, we will consider your order placed with the correct address. Should an incorrect address be entered, and the shipment is returned by the carrier, the cost of the shipment and the return cost will be covered by you, the purchaser. These costs may be deducted from any refund if you cancel the order or choose to have it reshipped. This applies even if your order was placed via PayPal Express Checkout; it is your responsibility to confirm that the address is correct, including orders placed over the telephone.
Currency Selection and Product Availability
We are based in Ontario, Canada. You can choose to see prices in Canadian Dollars or USD. Select your preferred currency; C$ is shown when CAD is selected. We hold a vast inventory of products, but some products with limited shelf life are held in smaller quantities. Occasionally, your order may overlap with stock rotation, which may delay your order. If this occurs, we will notify you immediately with the expected arrival date. If you can't wait, respond to the email, and we will refund your order and notify you when the new stock arrives.
To see your shipping charge, add the quantity of the product to your shopping cart, then enter your postal code on the next screen. A list of shipping services from Canada Post and FedEx will be shown with prices and estimated delivery dates. Please note these are only estimated dates, not guaranteed.
No need to create an account at this stage, but once logged in, the shipping quotation system will also calculate the taxes.
Prior to placing an order, consider the recommendations in the above video
The LS14250PF, with its stable high-voltage response, is the ideal choice for powering utility metering, alarms and security devices, tollgate systems, memory backup, computer real-time clocks, tracking systems, automotive electronics, and professional electronics. Its wide operating temperature range of -60°C to 85°C and low self-discharge rate of less than 1% per year at 20°C makes it a reliable choice for various environments and long-term use.
This battery is designed for integration into compact systems and offers superior resistance to atmospheric corrosion. It features a sturdy stainless steel container and end caps for low magnetic signature, hermetic glass-to-metal sealing, and a non-flammable electrolyte.
The Saft LS14250PF complies with the IEC 60086-4 safety standard and IEC 60079-11 intrinsic safety standard (class T4 assignment), and has received Underwriters Laboratories (UL) Component Recognition.
In terms of electrical characteristics, the Saft LS14250PF has a nominal capacity of 1.20 Ah (at 1 mA 20°C 2.0 V cut-off), an open circuit voltage of 3.67 V (at 20°C), and a nominal voltage of 3.6 V (at 0.1 mA 20°C). It showcases a pulse capability of up to 100 mA and a maximum recommended continuous current of 35 mA.
The battery measures 14.55 mm (0.57 in) in diameter and 25.15 mm (0.99 in) in height, with a typical weight of 8.9 g (0.3 oz). It contains approximately 0.3 g of Li metal and is available with various termination suffixes for your convenience.
Please note, to prevent fire, explosion, and burns, do not solder directly onto the cell. The Saft LS14250PF should be stored in a clean, cool (preferably not exceeding 30°C), dry, and ventilated area.
With its notable features and robust performance, the Saft LS14250PF is the optimal solution for your battery needs.
IMPORTANT: PLEASE READ ME
Hello! Before you complete your purchase, let's make sure the replacement battery is a perfect fit for your device. Follow these steps to confirm compatibility:
- Check the Model Number: Verify that the original battery model number is mentioned in our product description.
- Device Model Verification: Ensure your device model number is listed in the product description.
- Battery Chemistry: Confirm that the chemistry of the replacement battery matches your original (e.g., NiMh can replace NiCd).
- Voltage Match: The voltage of the replacement battery should match your original battery. Slight variations are typically acceptable (e.g., 14.4V can replace 14.8V, or 7.2V can replace 7.4V).
- Physical Dimensions: Compare the physical dimensions of the replacement battery with your original to ensure a proper fit.
- Warranty Information: Review the product details section for warranty period information.
Given the subtle differences in battery replacements across similar device models, we highly recommend opening your device to double-check the battery model before placing your order.
Thank you for verifying these details to ensure a smooth and satisfactory purchase. We appreciate your choice of our brand and are here to help with any questions you may have!
