Opposite Tabs 1/2 Aa Saft Ls14250 3.6v 1200mah Battery
One of the key features of the LS14250CNR is its unwavering high voltage response throughout the majority of its lifespan. Equipped with an impressive operating temperature range from -60°C to 85°C, it can adapt to varied environmental conditions. Its low self-discharge rate of less than 1% per year at 20°C ensures its dependability even after prolonged storage periods.
The LS14250CNR, being compact and easy to incorporate into various systems, boasts superior resistance to atmospheric corrosion due to its stainless steel container and end caps. It adheres to the IEC 60086-4 safety standard and IEC 60079-11 intrinsic safety standard (class T4 assignment), guaranteeing its safe usage across different applications. Furthermore, it is recognized by the Underwriters Laboratories (UL) and is non-restricted for transport/non-assigned to Class 9 as per the UN Recommendations on the transport of dangerous goods – Model Regulations.
Manufactured in France, the UK, and China, the LS14250CNR is perfect for use in utility metering, automatic meter reading, alarms and security devices, tollgate systems, memory back-up, computer real-time clocks, tracking systems, automotive electronics, and professional electronics.
With a nominal capacity of 1.20 Ah (at 1 mA 20°C 2.0 V cut-off), an open circuit voltage of 3.67 V (at 20°C), and a nominal voltage of 3.6 V (at 0.1 mA 20°C), the LS14250CNR exhibits exceptional electrical characteristics. It has a nominal energy of 4.32 Wh and a pulse capability of up to 100 mA. It can handle a maximum recommended continuous current of 35 mA, with the possibility of higher currents upon consulting with Saft.
The LS14250CNR, with dimensions of 14.62 mm in diameter and 25.13 mm in height, and a weight of approximately 9g, is recommended to be stored at a maximum of 30°C (86°F) and functions efficiently at temperatures ranging from -60°C to 85°C (-76°F/ 185°F). For severe conditions, consultation with Saft is advised. With tabs welded on each end of the cell in opposite directions, the LS14250CNR is indeed the top choice for crafting dependable battery packs. Please bear in mind that soldering directly to the cell may result in fire, explosion, and burn hazards.
Care information
Care information
Some Useful Battery Information
Please read this before using your new battery!
Cordless phone batteries, Cell phones, PDAs, Power Tool Batteries, and all devices with the chemistries below
These types of batteries can be NIMH, NiCad, or Lithium Ion all these three chemistries have similar properties when looking after them.
Initial charge- all three types of batteries should be fully charged overnight on receipt.
Charges 2-6- it is very important to fully charge the battery and then use the battery until the device says low battery. There is no need to force a discharge just use the device as normal until the battery runs down to about 20% of its charge. The important thing about these 2-6 conditioning cycles is that you do not top up the battery until it reaches about 20% of its charge. Do not let the battery run flat, especially on the first 3-4 cycles.
After conditioning- the best course of action to lengthen the life of these types of batteries is to only replace the device on the charger when the device needs charging. All three chemistries of batteries can be cycled around 500 times if the device was placed on the charger once every day after one use the battery would last approx 500 days if placed on the charger twice a day after use the battery would last approx 250 days. A battery does not half cycle so even if the battery was 80% charged a full cycle will be used when it is placed on charge.
SLA Batteries
This type of chemistry does not need conditioning the battery can be cycled around 300-400 times, although the battery is best used heavily at the top end of its charge. This battery should be topped up and not used till flat.
The average life of an SLA battery is 2-3 years depending on use and care.
Laptop Batteries
Most laptop batteries today use Lithium Ion Technology. The recommended care is slightly different from that above.
Initial charge- The battery should be fully charged overnight on receipt.
Charges 2-6- it is very important to fully charge the battery and then use the battery until the device is discharged to only about 20% of its charge. Do not let the battery drain down completely or the charging circuit in the laptop may not detect a good battery. This is especially important in the first 5 cycles. There is no need to force a discharge just use the device as normal until the battery runs down. The important thing about these 2-6 conditioning cycles is that you do not top up the battery until it reaches 20% of its charge.
After conditioning- the best course of action to lengthen the life of these types of batteries is more difficult to ascertain the main problem is that if you are constantly plugging in and out of the mains adaptor the battery life will be reduced significantly. .The best thing to do is to make sure that you fully cycle the battery and let it run low at least once a month. Lithium batteries need to be exercised to maintain their usability.
If you have any questions or would like to speak to us about your order please do not hesitate to contact us.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Everything You Need to Know About Our Shipping
Can we use our own carriers or FedEx, UPS, Purolator, Canpar, or Canada Post accounts to ship the order we have placed?
Unfortunately, due to our systems integration with these carriers, we are unable to offer this service at this time.
Do you offer same-day shipping?
Yes, as long as the order is placed before 11:59 am. (Please note this does not mean we offer same-day delivery.)
Can we come to your Oakville location and collect the products that we need urgently?
Not at this time.
Do you ship to Puerto Rico?
We are unable to ship lithium batteries to Puerto Rico, only NiMH batteries.
All About Our Paid Shipping Services
Canadianbatteries.com offers a wide variety of shipping methods through Canada Post, FedEx, UPS, Canpar, and Purolator. It's up to you to select the method best suited to your time scale and budget. Some shipping methods are not available for certain products.
Shipping costs are automatically calculated by our intelligent shipping estimation program based on the weight, distance to the destination, and the shipping service. To obtain your shipping cost, add the desired items to your shopping cart, proceed to checkout, and enter your postal code. Here you will be shown the available shipping methods, expected transit times, and the estimated delivery date with pricing.
It's important to understand that in-transit times and delivery dates are the best estimates provided by the respective carriers. Once we hand off the package to the carriers, responsibility for carrier or weather-related delays is passed to them. Transit times should be calculated only on business days and do not include weekends and holidays. Depending on product availability, this may postpone the actual shipping dates.
We endeavor to ship most orders by the next business day, but certain products, including sealed lead acid, may take longer. If there is a delay longer than five days, we will notify you. We can only ship to PO Boxes with Canada Post; FedEx and all our other services cannot deliver to post office boxes. We will require at least one business day for order processing.
Domestic Shipping Services Offered Through UPS, FedEx & Canada Post:
Canada Post
- Expedited: For many orders, this will be the cheapest solution (especially low-value lighter orders). Orders can be delivered to a Post Office Box. 1-10 business days transit depending on location.
- International (USA): We can ship NiMH, Alkaline, Sealed Lead Acid, and NiCd batteries to the United States, but we are unable to ship lithium batteries to the USA by the postal service. You would need to select FedEx for this chemistry.
FedEx
- FedEx Ground: This method is the fastest for shipping lithium metal batteries and is usually more economical for heavier shipments. We can ship all battery chemistries via this service.
- International (USA): We can ship Lithium Ion, Lithium Polymer, NiMH, Alkaline, Sealed Lead Acid, and NiCd batteries to the United States, but we are unable to ship lithium metal batteries to the USA by air. You would need to select FedEx Ground for this chemistry.
UPS
- UPS Standard: This method is the fastest for shipping lithium metal batteries and is usually more economical for heavier shipments. We can ship all battery chemistries via this service.
- International (USA): We can ship Lithium Ion, Lithium Polymer, NiMH, Alkaline, Sealed Lead Acid, and NiCd batteries to the United States, but we are unable to ship lithium metal batteries to the USA by air.
Purolator
- Purolator Ground: This method is the fastest for shipping lithium metal batteries and is usually more economical for heavier shipments. We can ship all battery chemistries via this service.
- Purolator International (USA): We can ship Lithium Ion, Lithium Polymer, NiMH, Alkaline, Sealed Lead Acid, and NiCd batteries to the United States, but we are unable to ship lithium metal batteries to the USA by air.
Canpar
- Canpar Ground: This method is the fastest for shipping lithium metal batteries and is usually more economical for heavier shipments. We can ship all battery chemistries via this service.
Customs and Import Duties
- Your order may be subject to retail sales tax, import duties, and/or taxes, which may be applied by your country when your package arrives.
- Canadianbatteries.com ships your package duties and taxes unpaid. We do not collect these charges and cannot predict what they may be. If you incur these additional charges, they must be paid for your package to clear customs.
- For more information regarding your country's customs policies, please contact your local customs office.
Acceptance of Incorrect Addressing Order Policy
A confirmation email is sent to you once your order is placed. Please check that the address details provided in this email are correct within 30 minutes of placing the order and notify us of any errors. If no corrections are made within this time, we will consider your order placed with the correct address. Should an incorrect address be entered, and the shipment is returned by the carrier, the cost of the shipment and the return cost will be covered by you, the purchaser. These costs may be deducted from any refund if you cancel the order or choose to have it reshipped. This applies even if your order was placed via PayPal Express Checkout; it is your responsibility to confirm that the address is correct, including orders placed over the telephone.
Currency Selection and Product Availability
We are based in Ontario, Canada. You can choose to see prices in Canadian Dollars or USD. Select your preferred currency; C$ is shown when CAD is selected. We hold a vast inventory of products, but some products with limited shelf life are held in smaller quantities. Occasionally, your order may overlap with stock rotation, which may delay your order. If this occurs, we will notify you immediately with the expected arrival date. If you can't wait, respond to the email, and we will refund your order and notify you when the new stock arrives.
To see your shipping charge, add the quantity of the product to your shopping cart, then enter your postal code on the next screen. A list of shipping services from Canada Post and FedEx will be shown with prices and estimated delivery dates. Please note these are only estimated dates, not guaranteed.
No need to create an account at this stage, but once logged in, the shipping quotation system will also calculate the taxes.
Description
Description
This compact powerhouse showcases an impressive operating temperature range of -60°C to 85°C, making it adaptable to various environmental conditions. With a minimal self-discharge rate of less than 1% per year of storage at 20°C, it guarantees sustained performance even after prolonged periods of storage.
The LS14250CNR is engineered with a robust stainless steel container and end caps, offering superior resistance to atmospheric corrosion. It adheres to the IEC 60086-4 safety standard and IEC 60079-11 intrinsic safety standard (class T4 assignment), ensuring its safe use across diverse applications. It also boasts Underwriters Laboratories (UL) Component Recognition and complies with UN transport regulations, making it non-restricted for transport.
Ideal for use in a multitude of devices and systems such as utility metering, alarms, tollgate systems, tracking systems, and automotive electronics, this battery cell is manufactured in France, UK, and China.
Electrical characteristics include a nominal capacity of 1.20 Ah, an open circuit voltage of 3.67 V, and a nominal voltage of 3.6 V. It offers a nominal energy of 4.32 Wh and a pulse capability of up to 100 mA, with a maximum recommended continuous current of 35 mA.
The LS14250CNR measures 14.62 mm in diameter and 25.13 mm in height, and weighs approximately 9g. It is recommended to be stored at a maximum of 30°C (86°F). For optimal performance in extreme conditions, Saft consultation is advised.

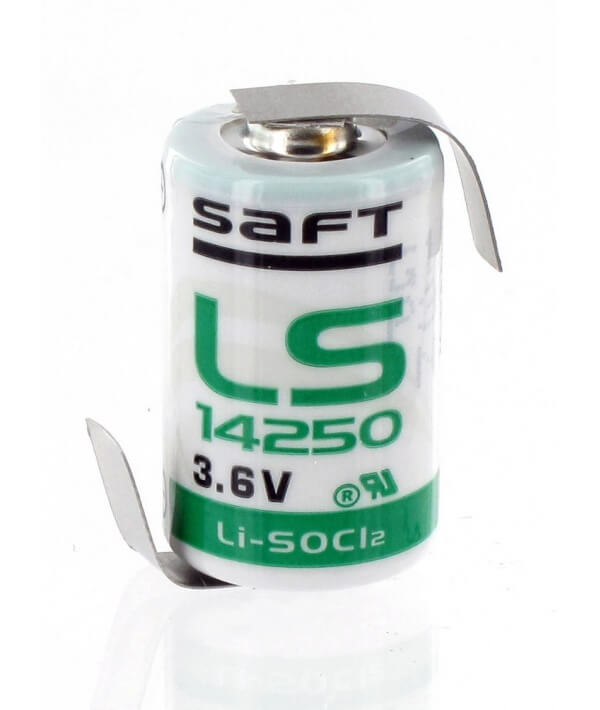

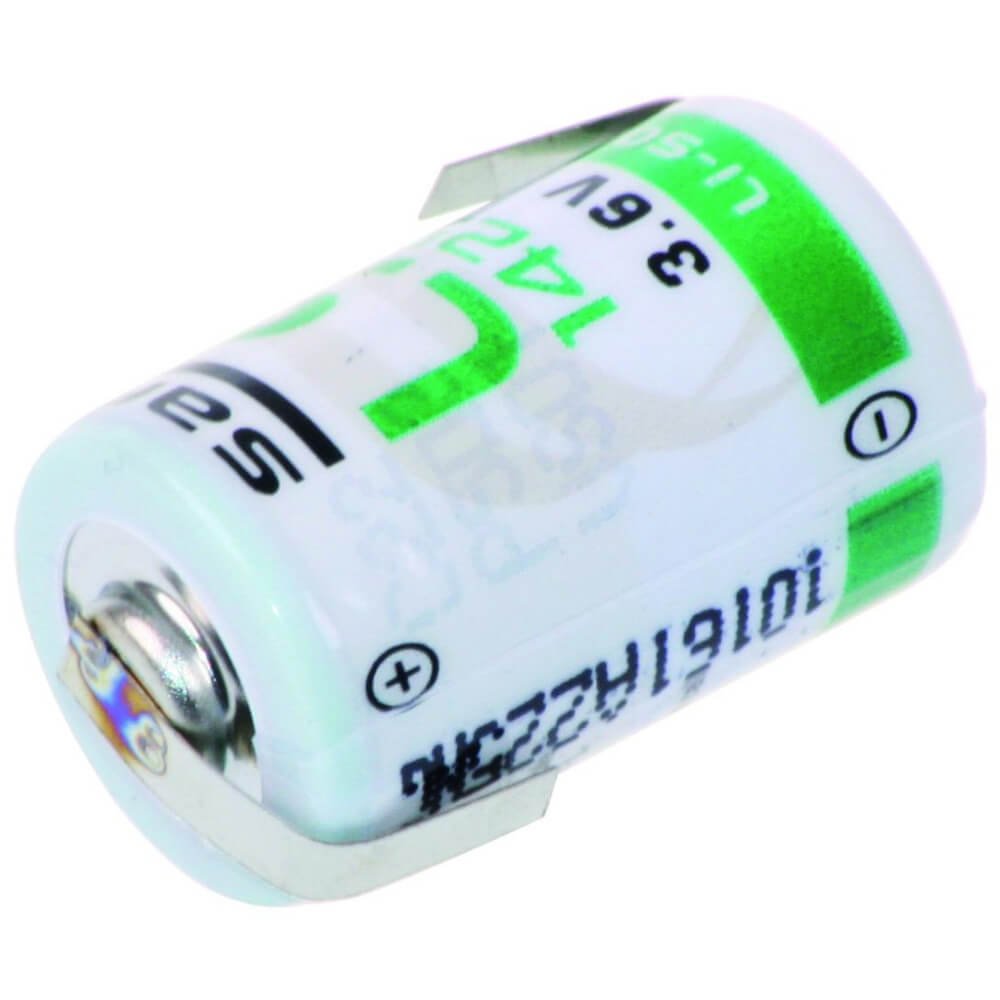

With welded tabs on each end of the cell in opposite directions, the LS14250CNR is the ideal choice for creating reliable battery packs. Safety precautions should be observed to avoid fire, explosion, and burn hazards by not soldering directly to the cell.

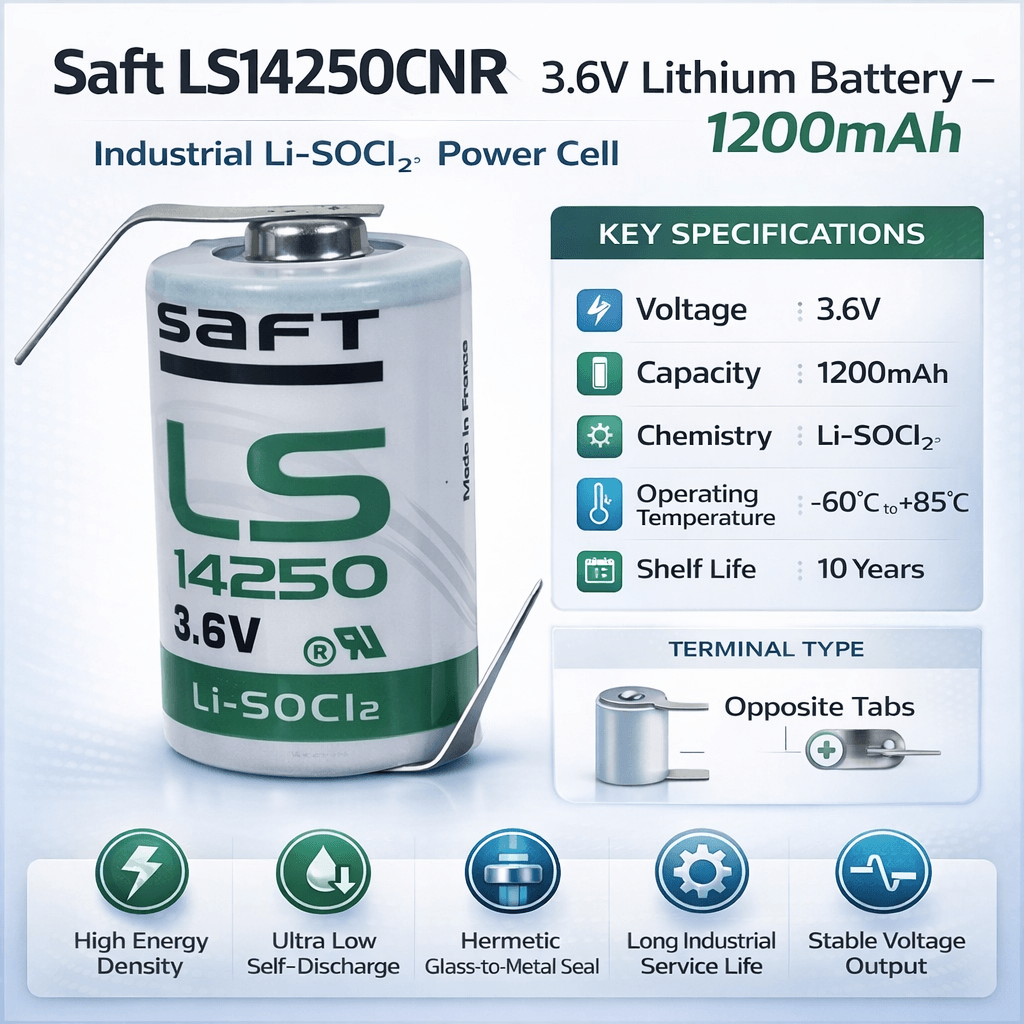

Product specifications include:
- Cell Size Reference: 1/2 AA
- Part Number: LS14250CNR
- Nominal Capacity: 1200mAh
- Nominal Voltage: 3.6V (at 0.2 mA, 20°C)
- Diameter (Max): 14.62 mm (0.57 in)
- Height (Max): 25.13 mm (0.99 in)
- Typical Weight: 9g (~0.3 oz)
- Operating Temperature Range: -60°C/ 85°C (-76°F/ 185°F)
- Li Metal Content: approx. 0.3 g
- EAN / GTIN: 4016138771640
- Termination Suffix: CNR
- Warnings: Fire, explosion, and burn hazard
- Open Circuit Voltage: 3.67V (at 20°C)
- Storage Info: Clean, cool (preferably not exceeding 30°C), dry, and ventilated area
- Compliancy: IEC 60086-4, IEC 60079-11
- Type of Termination: With Tabs (Opposite Directions)
- Pulse Capacity: Typically up to 100 mA
- Maximum Continuous Current: 30mA
- Nominal Energy: 4.32 Wh
